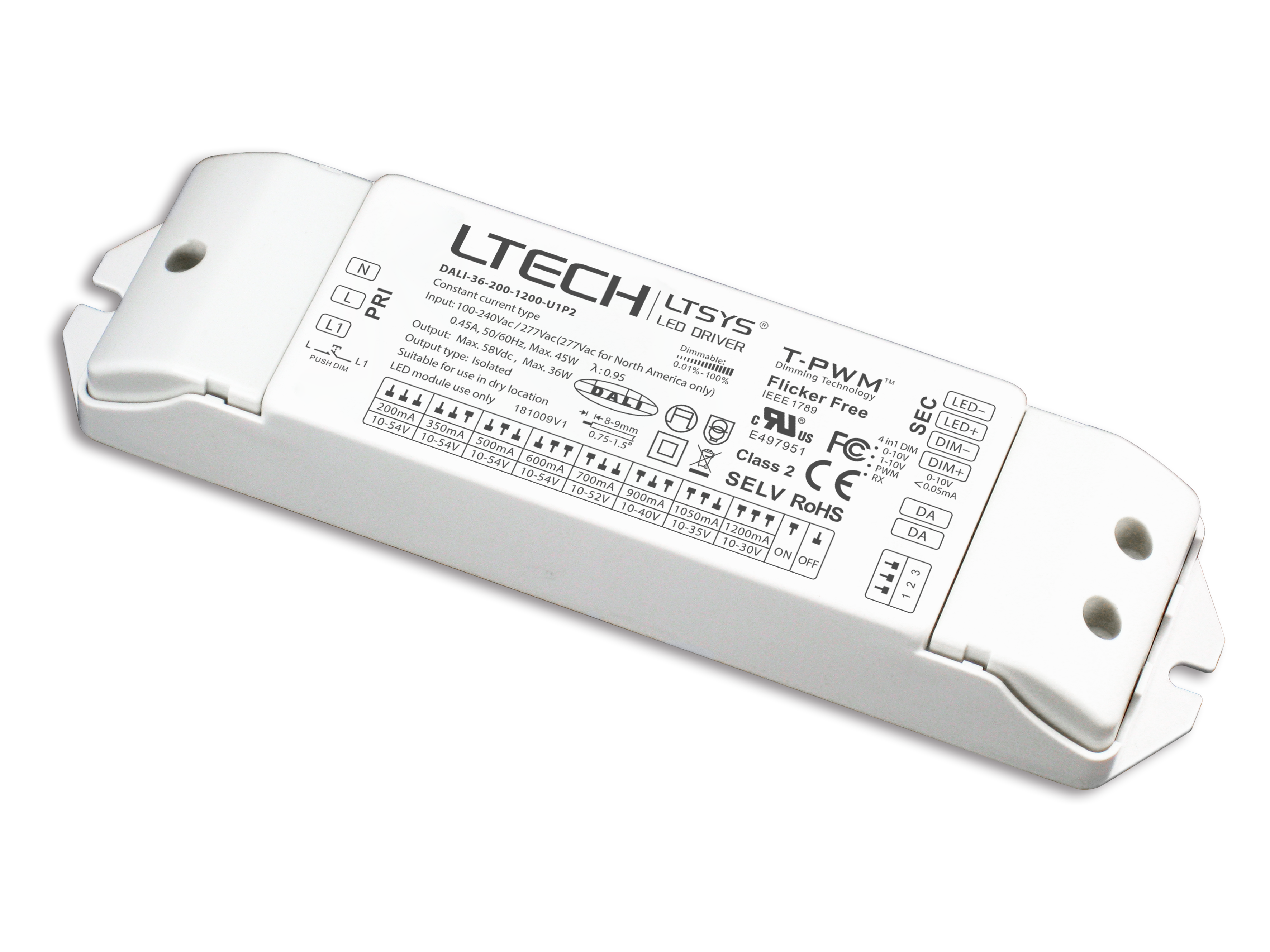

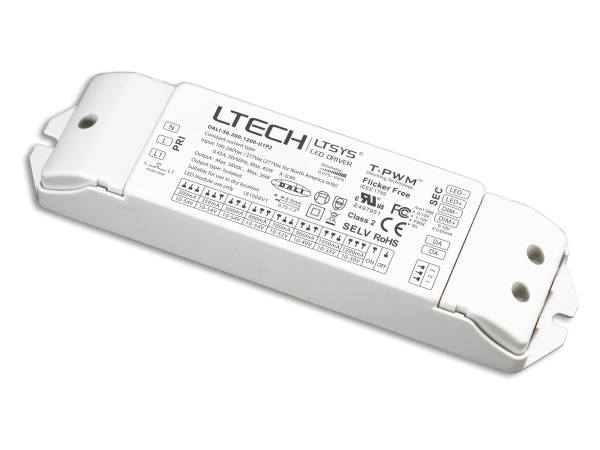

| Model: | DALI-36-200-1200-U1P2 |
| Certification: | UL,FCC,DALI,CE |
| Dimming interface: | DALI, 0-10V(1-10V/PWM/RX)，Push Dim. |
| Dimming range: | 0~100%, 0.01% dimming depth |
| Input voltage: | 100-277Vac ±10% |
| Sec. output : | Pout(Max.) Vout(DC) Constant(DC) 2-10.8W 10-54V 200mA 3.5-18.9W 10-54V 350mA 5-27W 10-54V 500mA 6-32.4W 10-54V 600mA 7-36.4W 10-52V 700mA 9-36W 10-40V 900mA 10.5-35.7W 10-34V 1050mA 12-36W 10-30V 1200mA |
<
