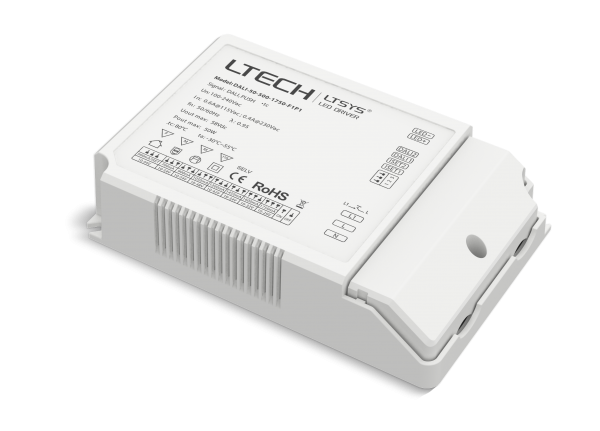

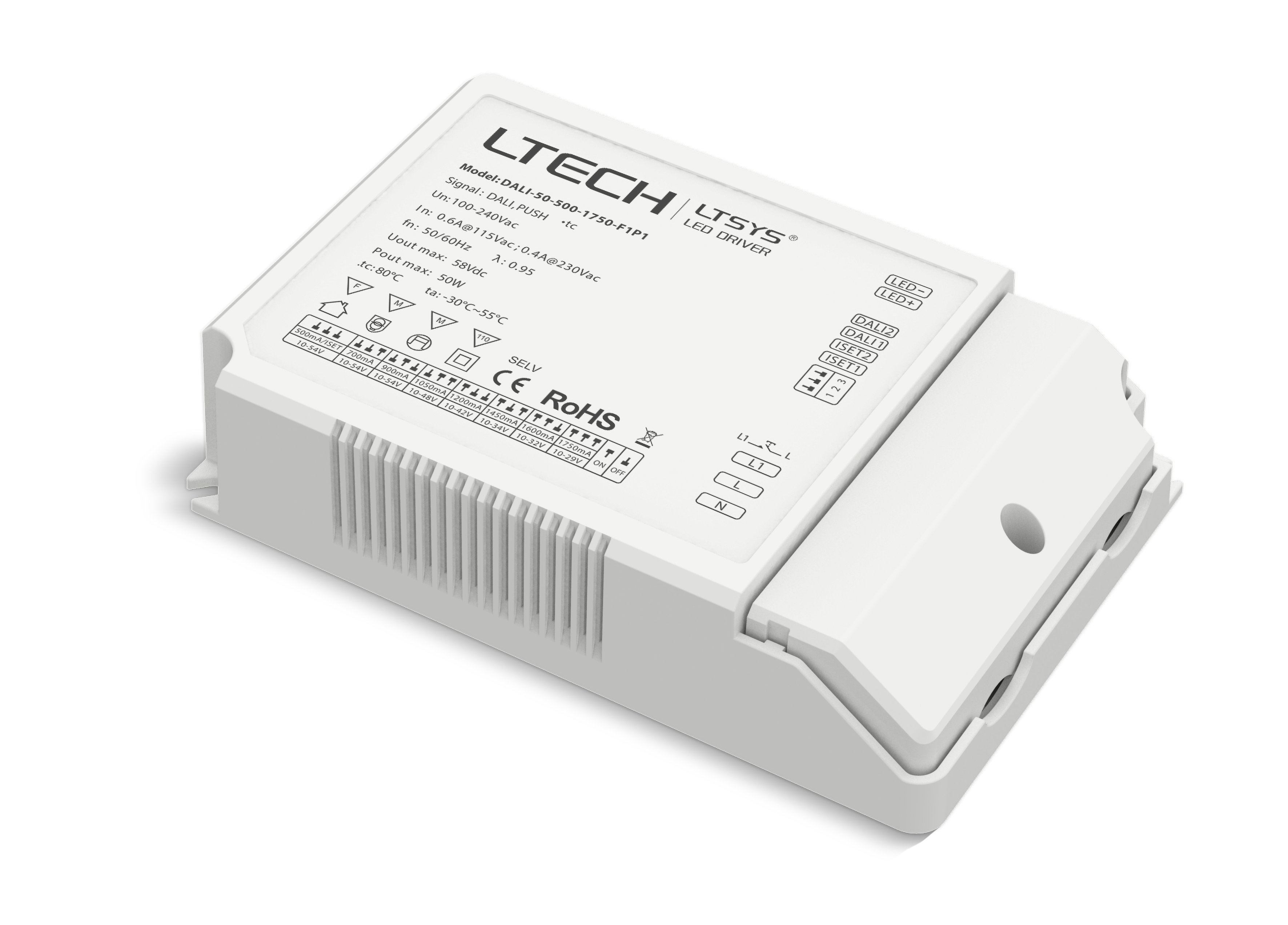

| Model: | DALI-50-500-1750-F1P1 |
| Certification: | CE,ROHS |
| Dimming interface: | DALI (IEC62386), Push Dim |
| Dimming range: | 0~100%, LED start at 0.1% possible |
| Input voltage : | 100-240Vac ±10% |
| Sec. output : | Pout(Max.) Vout(DC) Constant lout(DC) 5-27W 10-54V 500mA 7-37.8W 10-54V 700mA 9-48.6W 10-54V 900mA 10.5-50.4W 10-48V 1050mA 12-50.4W 10-42V 1200mA 14.5-49.3W 10-34V 1450mA 6-51.2W 10-32V 1600mA 17.5-50.8W 10-29V 1750mA |
<
