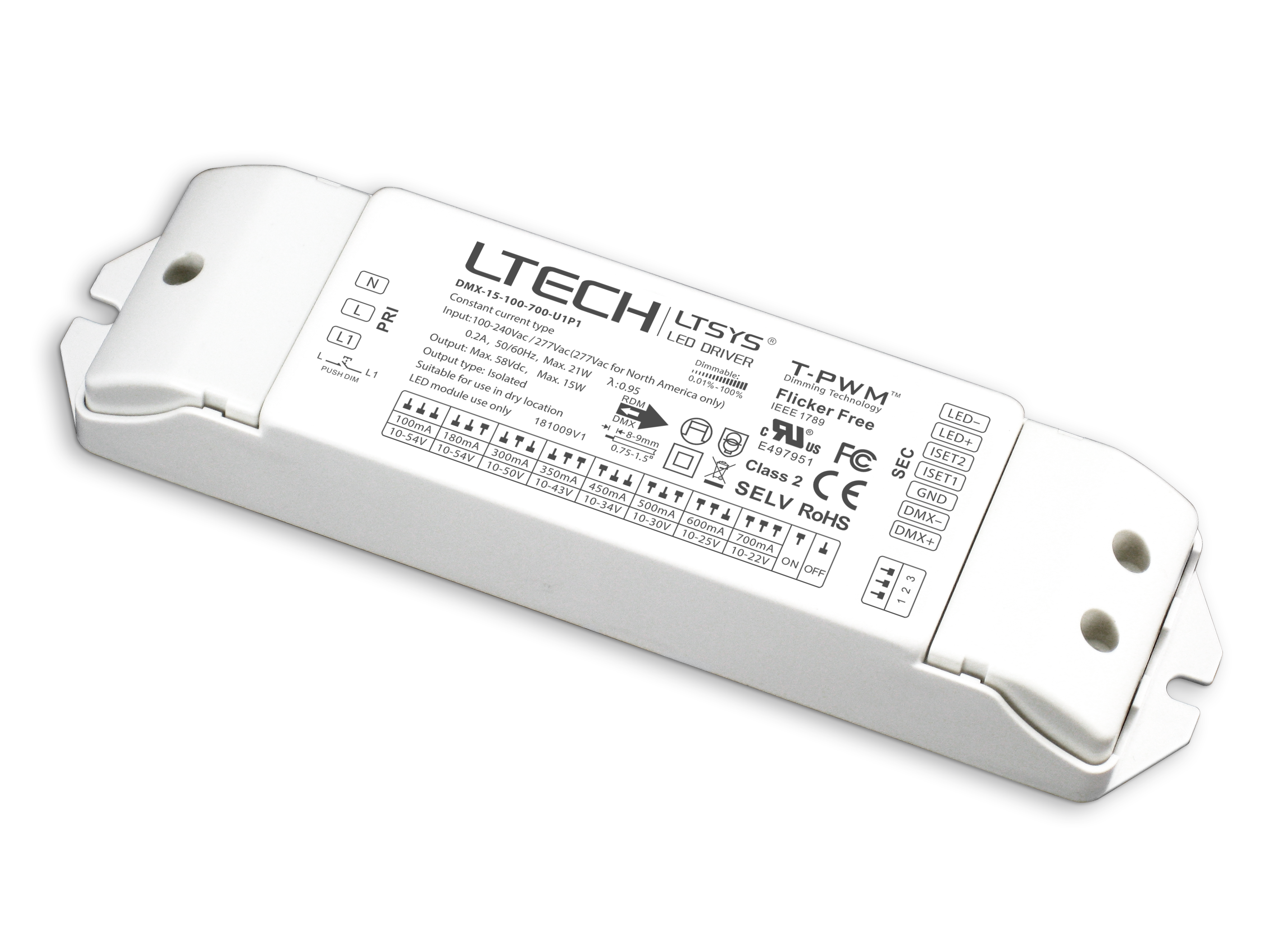

DMX-15-100-700-U1P1

Download Brochure



Model:   DMX-15-100-700-U1P1
Certification: UL,FCC,CE
Dimming interface: DMX512/RDM, Push Dim
Dimming range: 0~100%, LED start at 0.01% possible
Input voltage : 100-277Vac ±10% (Max. 90-305Vac)
Sec. output : Pout(Max.)       Vout(DC)     Constant(DC)
1W-5.4W          10-54V          100mA
1.8W-9.72W    10-54V           180mA
3W-15W           10-50V            300mA
3.5W-15.05W   10-43V           350mA
4.5W-15.3W     10-34V            450mA
5W-15W             10-30V           500mA
6W-15W             10-25V            600mA
7W-15.4W          10-22V          700mA

<
