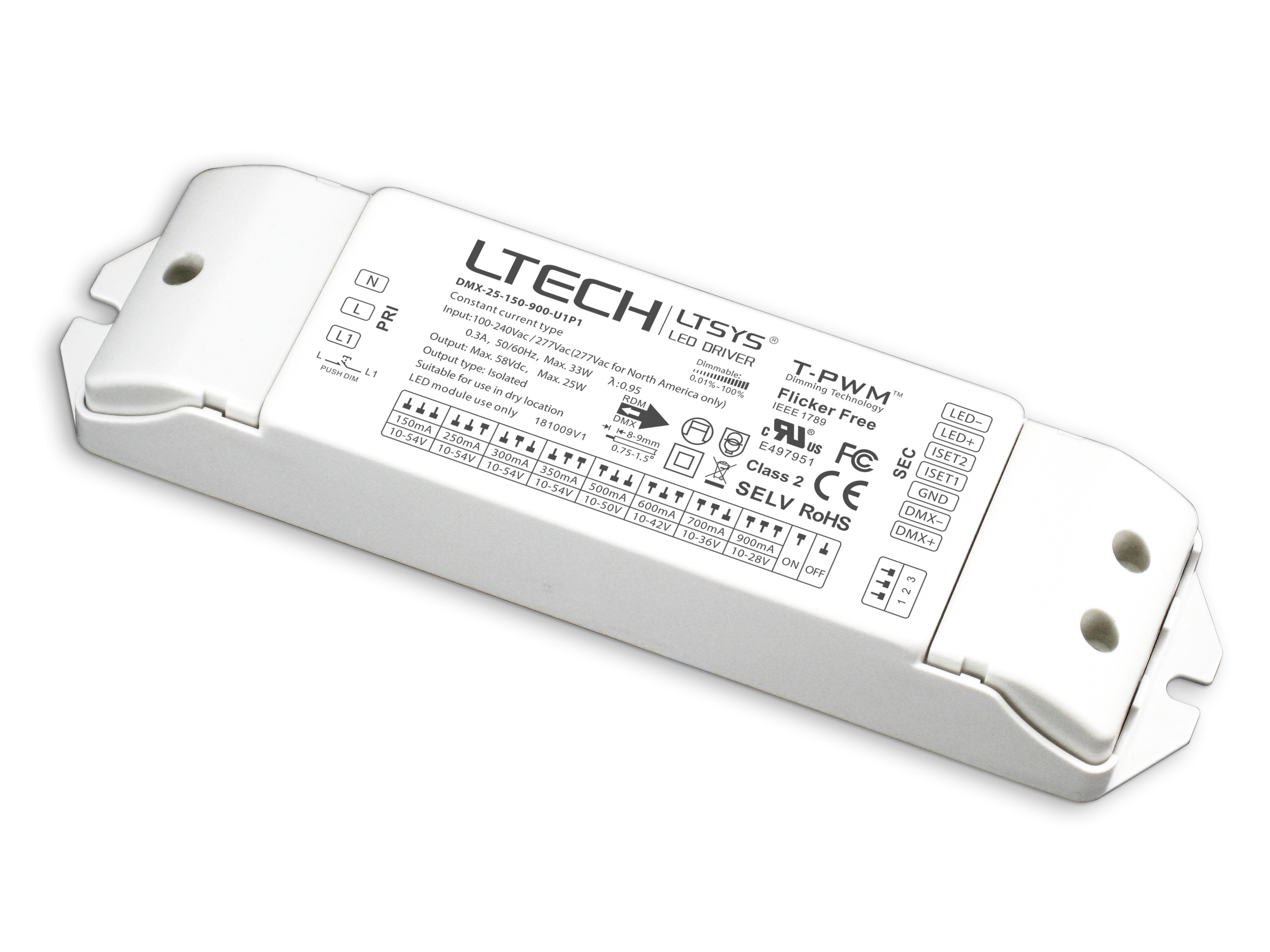

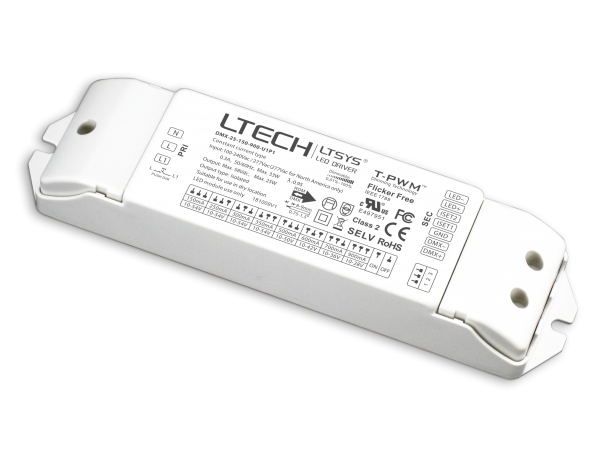

| Model: | DMX-25-150-900-U1P1 |
| Certification: |
UL,FCC,CE |
| Dimming interface: | DMX512/RDM, Push Dim |
| Dimming range: | 0~100%, LED start at 0.01% possible. |
| Input voltage : | 100-277Vac ±10% (Max. 90-305Vac) |
| Sec. output : | Pout(Max.) Vout(DC) Constant(DC) 1.5W-8.1W 10-54V 150mA 2.5W-13.5W 10-54V 250mA 3W-16.2W 10-54V 300mA 3.5W-18.9W 10-54V 350mA 5W-25W 10-50V 500mA 6W-25.2W 10-42V 600mA 7W-25.2W 10-36V 700mA 9W-25.2W 10-28V 900mA |
<
