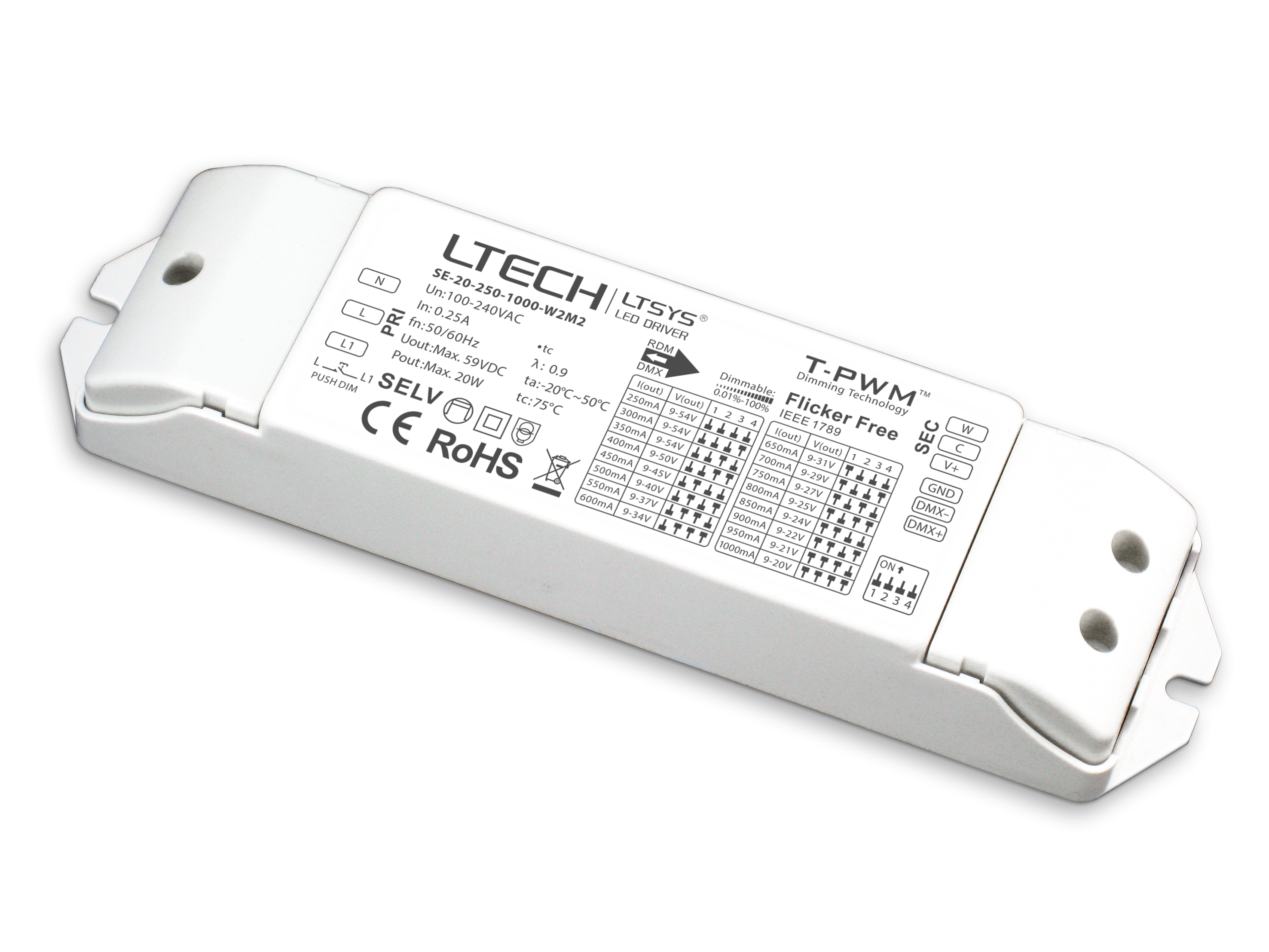

| Model: | SE-20-250-1000-W2M2 |
| Certification: | CCC,TUV,RCM,CB,CE,ROHS,SELV,DALI,Class 2 |
| Dimming Interface: | DMX512/RDM, Push Dim |
| Dimming Range: | 0~100%, 0.01% dimming depth. |
| Input Voltage : | 100-240Vac (120-300Vdc) |
| Input Current : | 115Vac≤0.25A, 230Vac≤0.13A |
| Power Factor: | PF>0.95/115Vac , PF>0.90/230Vac, at full load |
| Strobe Level : | Almost flicker-free / High frequency exemption assessment level. |
| Output Voltage : | 9-54Vdc |
| PWM Dimming Frequency : |
≤3600Hz
|
| Working Temperature : |
ta: -20 ~ 50°C tc: 75°C
|
<
